ExTell TerraCore Dielectric Series | G.652D SM | Multi-Tube | OD Direct Buried | FRP Armoured | Dual HDPE Jacket | Black | FO Cable

Model: ES2D1TDH2DM1-FXXX-BK

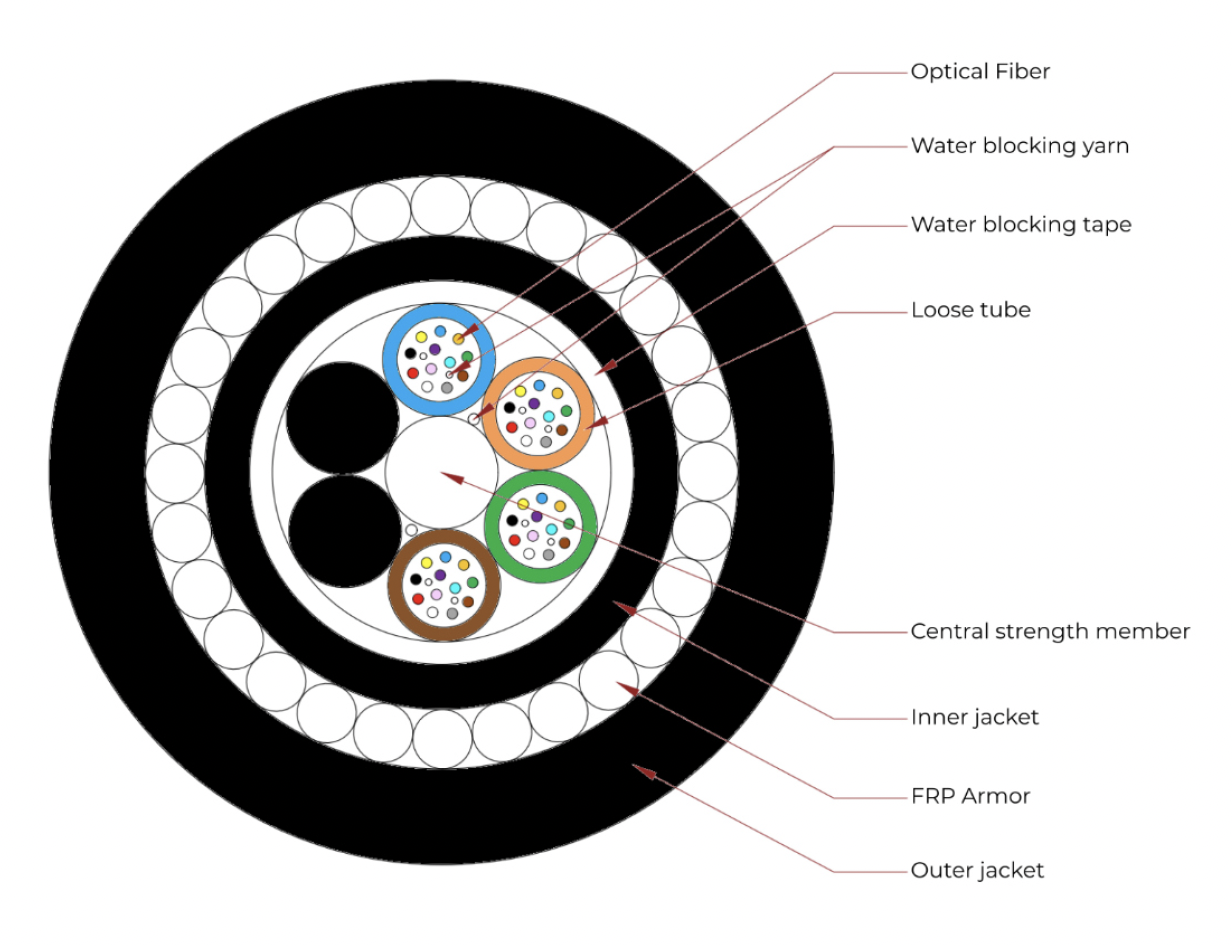

ExTell TerraCore Dielectric Series is a high-performance, non-metallic backbone solution designed for Direct-Buried / Underground Duct applications requiring maximum immunity to electromagnetic interference and lightning. This cable features a compact Multiitube architecture protected by high-tensile Fiber Reinforced Plastic (FRP) armouring, providing rugged mechanical defense without the use of metallic elements. Engineered for scalability from 24 to 144 cores , the TerraCore Dielectric series utilizes a Dual HDPE Jacket system to provide redundant defense against moisture ingress and soil chemicals. This non-metallic design is ideal for areas with high lightning activity or proximity to high-voltage power lines, ensuring a maintenance-free, 25-year service life in the harshest soil conditions.

Key Features

• Scalable Multitube Architecture: Utilizes a stranded design (up to 1+12 tubes) to support high-density fiber counts from 24 to 144 cores.
• Total Dielectric Immunity: Features FRP central strength members and FRP wire armouring, making the cable completely immune to EMI, RFI, and lightning strikes.
• Dual HDPE Protection: Dual High-Density Polyethylene jackets (Inner and Outer) provide superior mechanical strength and chemical resistance for direct-buried environments.
• 3000N Tensile & Crush Resistance: Engineered to withstand heavy soil loads and high installation tension without signal degradation.
• Total Water-Block System: Employs water-blocking yarns and tape to prevent longitudinal water migration, ensuring long-term optical stability.
