FIBER CABLES

ExTell TerraCore Metallic Series | G.652D SM | Multi-Tube | OD Direct Buried | Steel Wire Armoured | Dual HDPE Jacket | Black | FO Cable

Model: ES2D1TMH2CM1-FXXX-BK

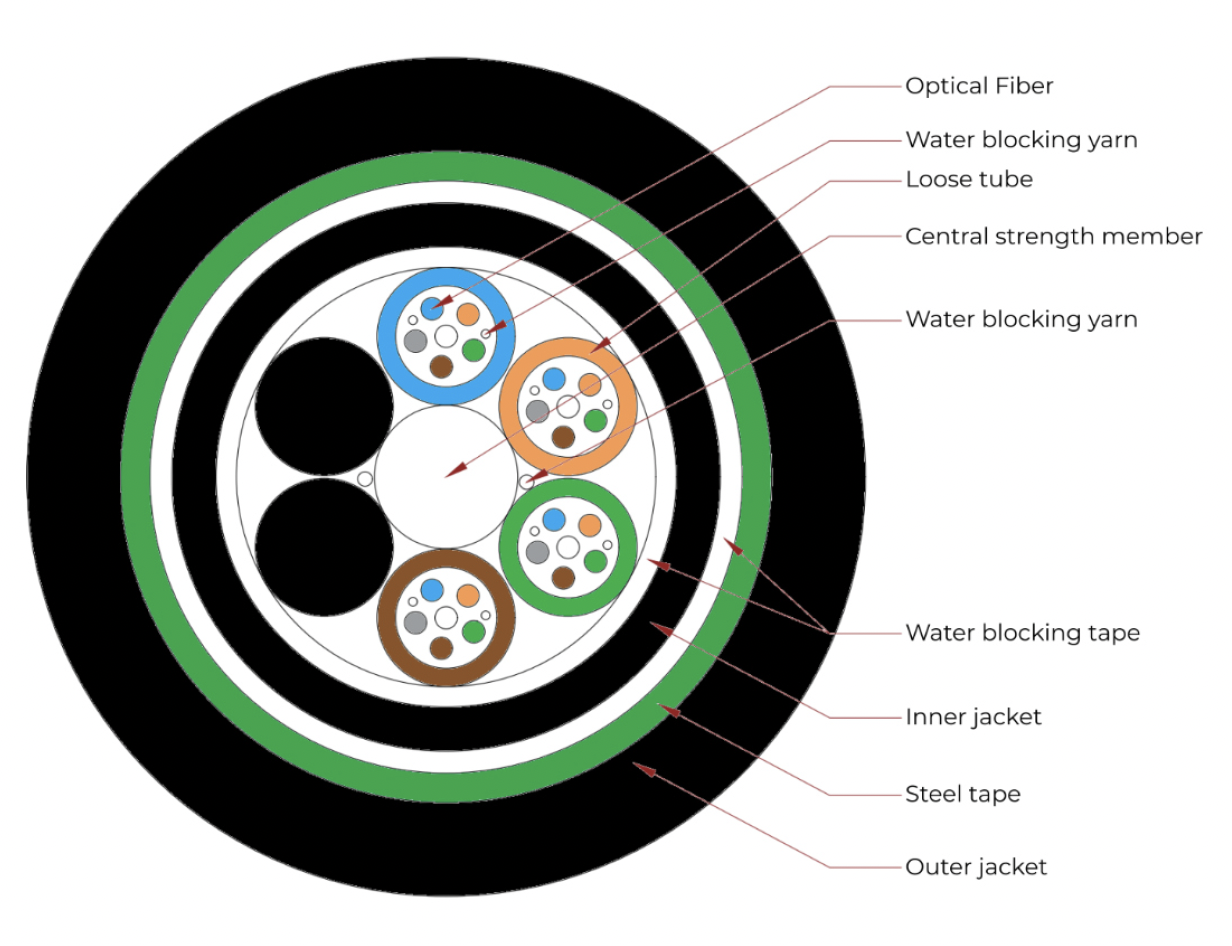

ExTell TerraCore Metallic Multi-tube Series is the high-capacity backbone solution for ruggedized direct-burial applications. Featuring a stranded multi-tube architecture, this cable is designed to house up to 144 fibers within a robust, multi-layered protective system. The cable utilizes a central dielectric strength member and Corrugated Steel Tape (CST) Armouring to provide exceptional mechanical protection against high soil pressure and rodent activity. With a Dual HDPE Jacket and advanced water-blocking technology, the TerraCore Metallic Multi-tube ensures maximum longevity and signal reliability in the most challenging environmental conditions.

Key Features

• High-Capacity Multi-tube Architecture: Optimized for core counts from 24 to 144, ensuring scalable bandwidth for metro and long-haul networks.
• Corrugated Steel Tape(CST) Armouring: Provides a high-strength metallic barrier against physical impact, crush forces (3000N), and rodent penetration.
• Redundant Moisture Defense: Features a dual HDPE (Inner and Outer) jacket system combined with longitudinal water U+002D blocking tape and yarns for total moisture immunity.
• Dielectric Central Strength: Utilizes a Central FRP strength member to maintain cable integrity while preventing buckling during installation.
• Rugged HDPE Sheathing: UV-stabilized and chemical-resistant outer jacket designed for a 25-year service life in direct-buried environments.
